McDonald Kitchen

Kitchen + living-space refresh · Lakewood, Colorado

This residential refresh grew from early space-planning and millwork studies into a coordinated Revit package. I worked through the kitchen and living-room reconfiguration, pantry, breakfast table, homework and craft zone, island seating, fireplace enclosure, cabinetry, lighting, and finish coordination.

ROLE + FIRM

Senior Project Architect at G Squared Design; design development, Revit production, material takeoffs, preliminary cost estimates, and coordination.

PROJECT TYPE

Residential interior renovation · design and documentation

PROJECT NOTES

The package moves from daily routines and planning decisions into cabinetry, ceilings, furniture, and construction details.

01THE BRIEF

Rework the kitchen and adjacent living area to improve seating, storage, family routines, and the connection between cooking and gathering.

02SPACE PLANNING

The plan coordinated a new island, range and refrigerator wall, pantry, breakfast table, homework and craft zone, and a fireplace enclosure with window seat.

03INTERIOR DEVELOPMENT

Cabinetry and island elevations, perspective studies, furniture, finishes, lighting, and reflected ceilings carried the concept into room-specific decisions.

04DOCUMENTATION

The Revit package brought the plans, millwork, details, material takeoffs, and preliminary cost information together without presenting the project as constructed work.

FIRMG Squared Design

LOCATIONLakewood, Colorado

DELIVERYConcept → Revit package

PROJECT NOTEFrom plan to millwork.

The design is shown at several scales: overall circulation and furniture, appliance and storage planning, cabinetry elevations, island development, reflected ceilings, and interior details.

REVIT DESIGN + DOCUMENTATION

McDonald Kitchen Revit perspective showing the range wall, island, and seating — Kitchen perspective · range wall, island + seating

McDonald Kitchen Revit perspective showing the island and full-height cabinetry — Kitchen perspective · island + full-height cabinetry

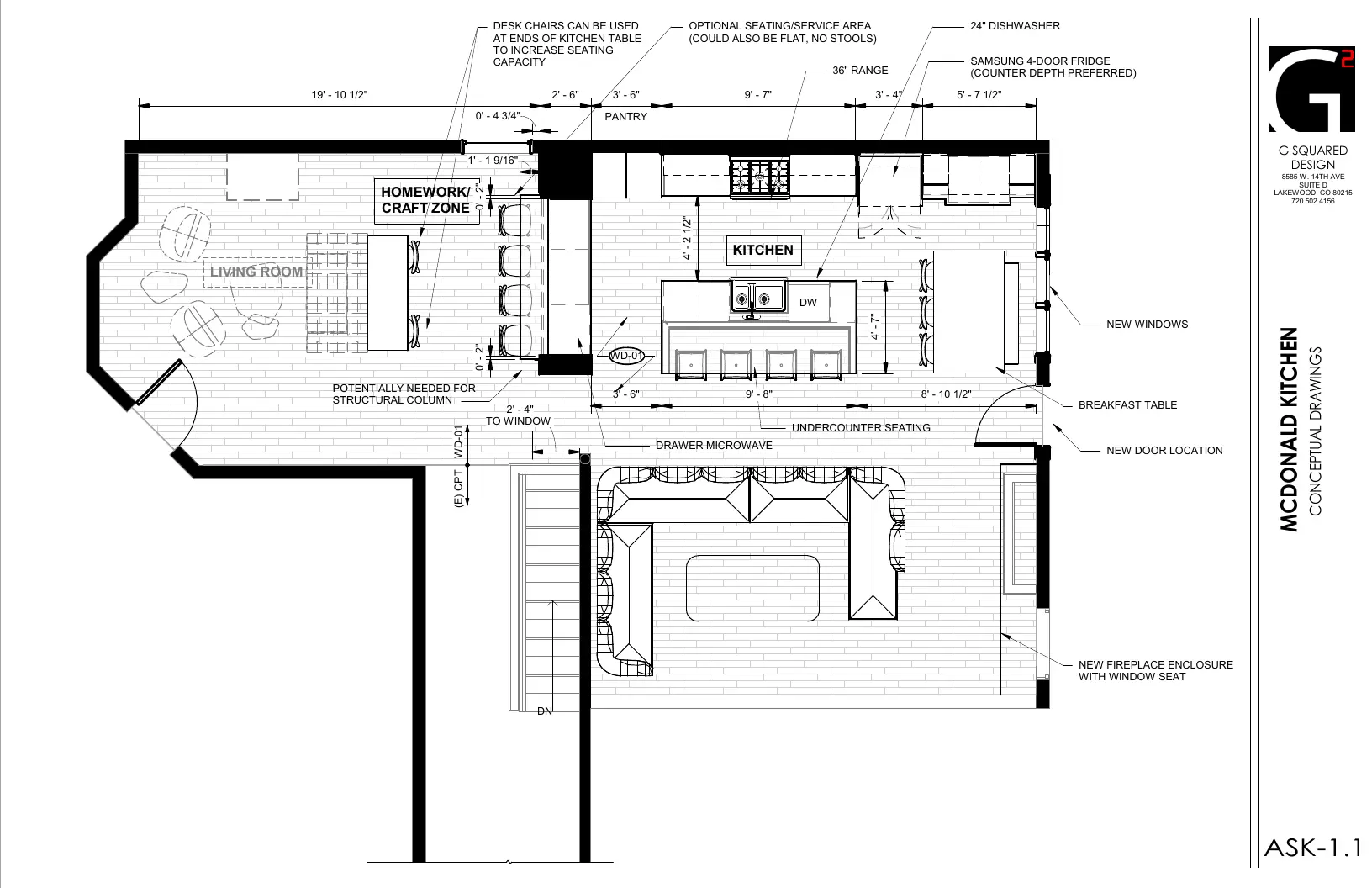

McDonald Kitchen conceptual floor and furniture plan — Conceptual plan · kitchen, living room + family work zone

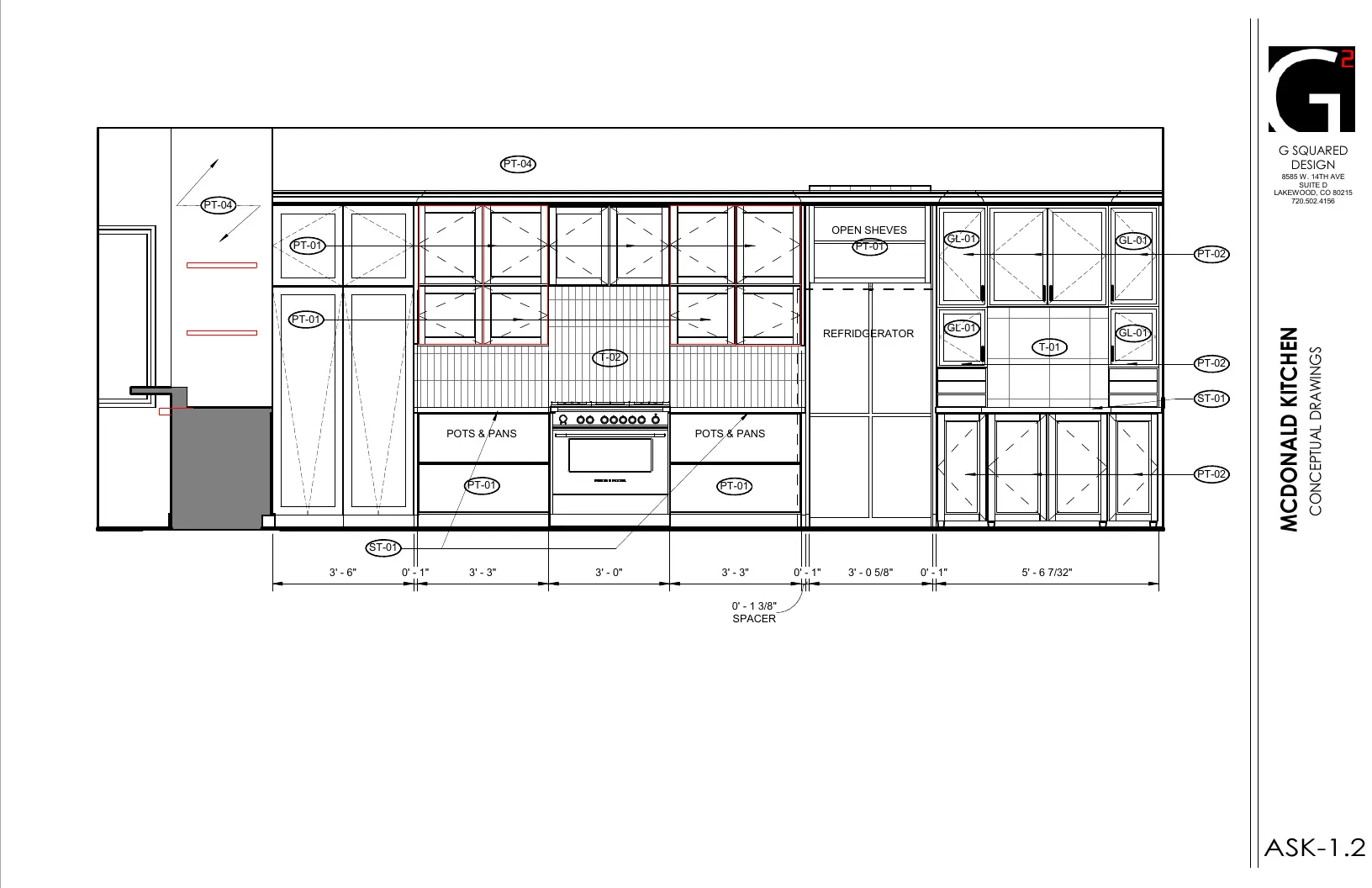

McDonald Kitchen full cabinetry-wall elevation — Cabinetry wall · storage, appliances + open shelving

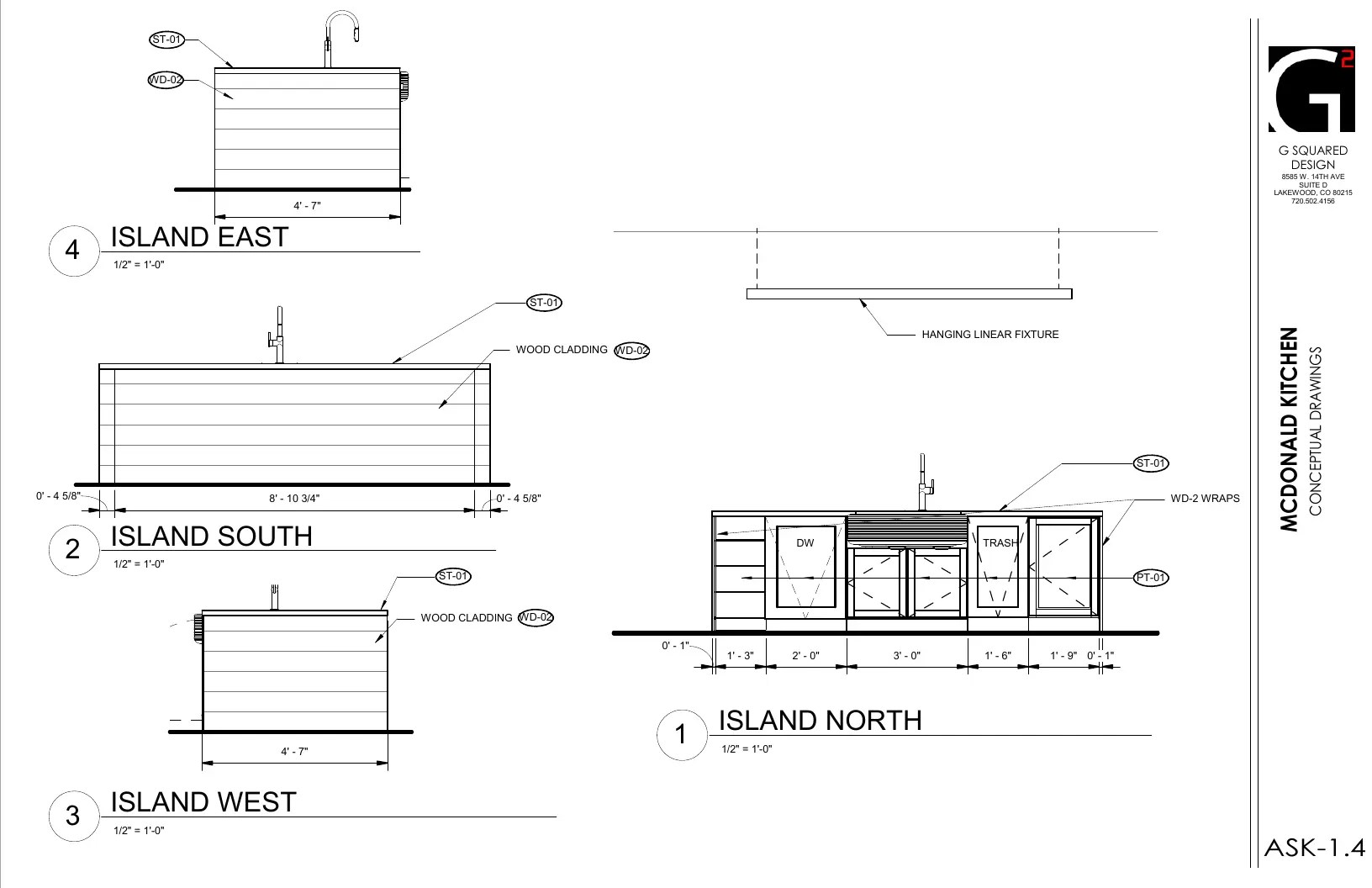

McDonald Kitchen island elevations — Island elevations · seating, cladding + storage

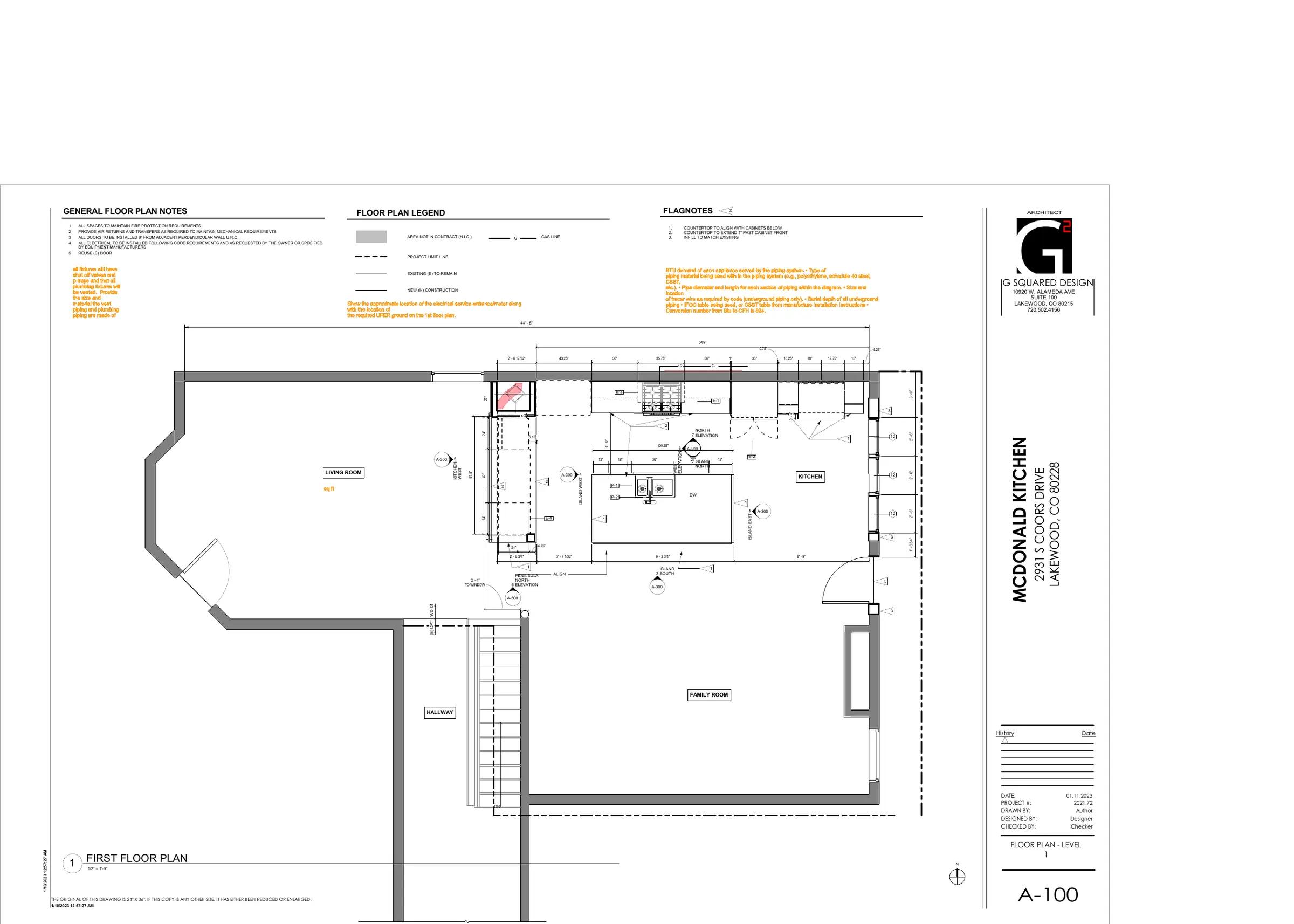

McDonald Kitchen coordinated floor and furniture plan — Coordinated floor + furniture plan

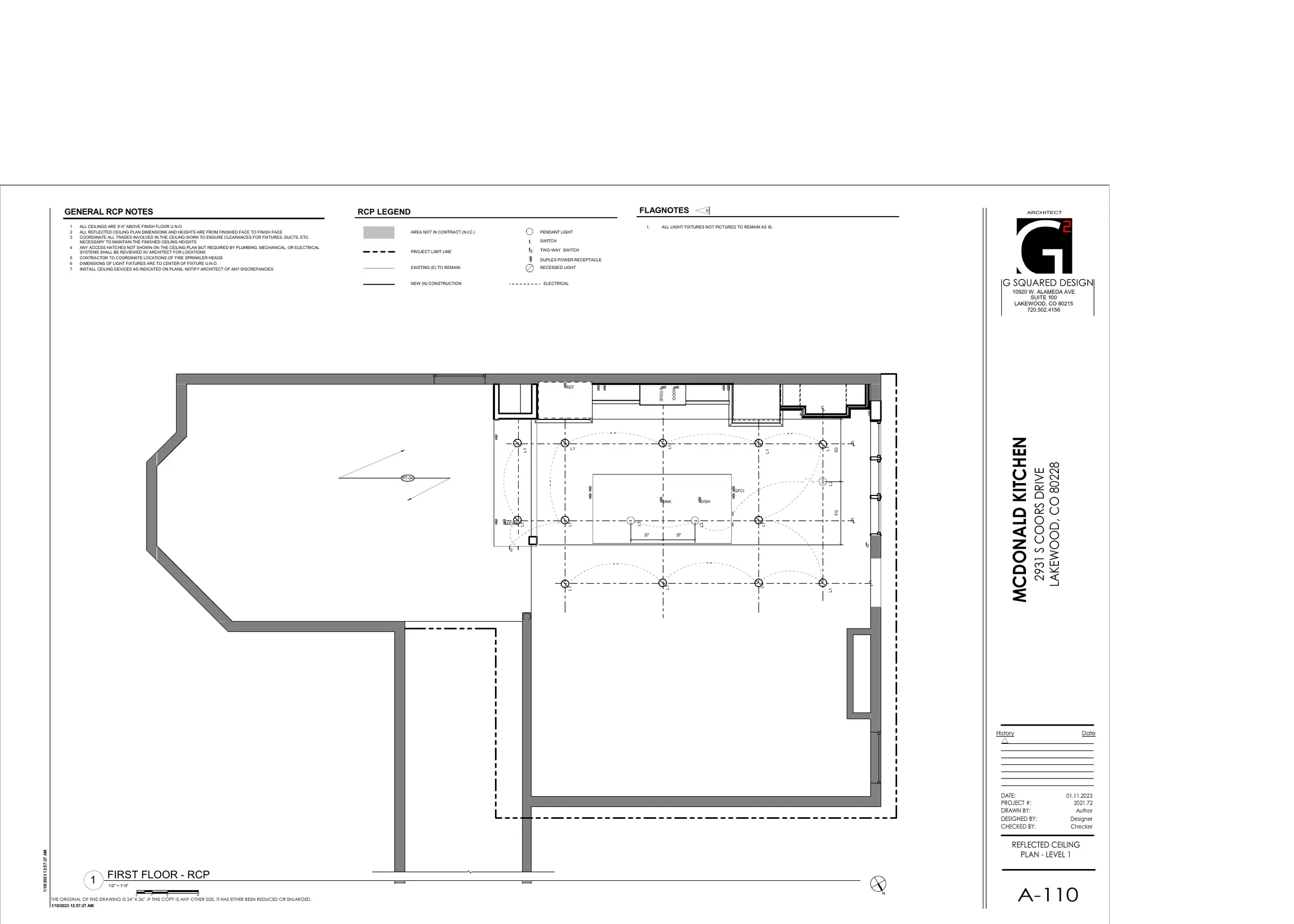

McDonald Kitchen reflected ceiling plan — Reflected ceiling plan · lighting coordination

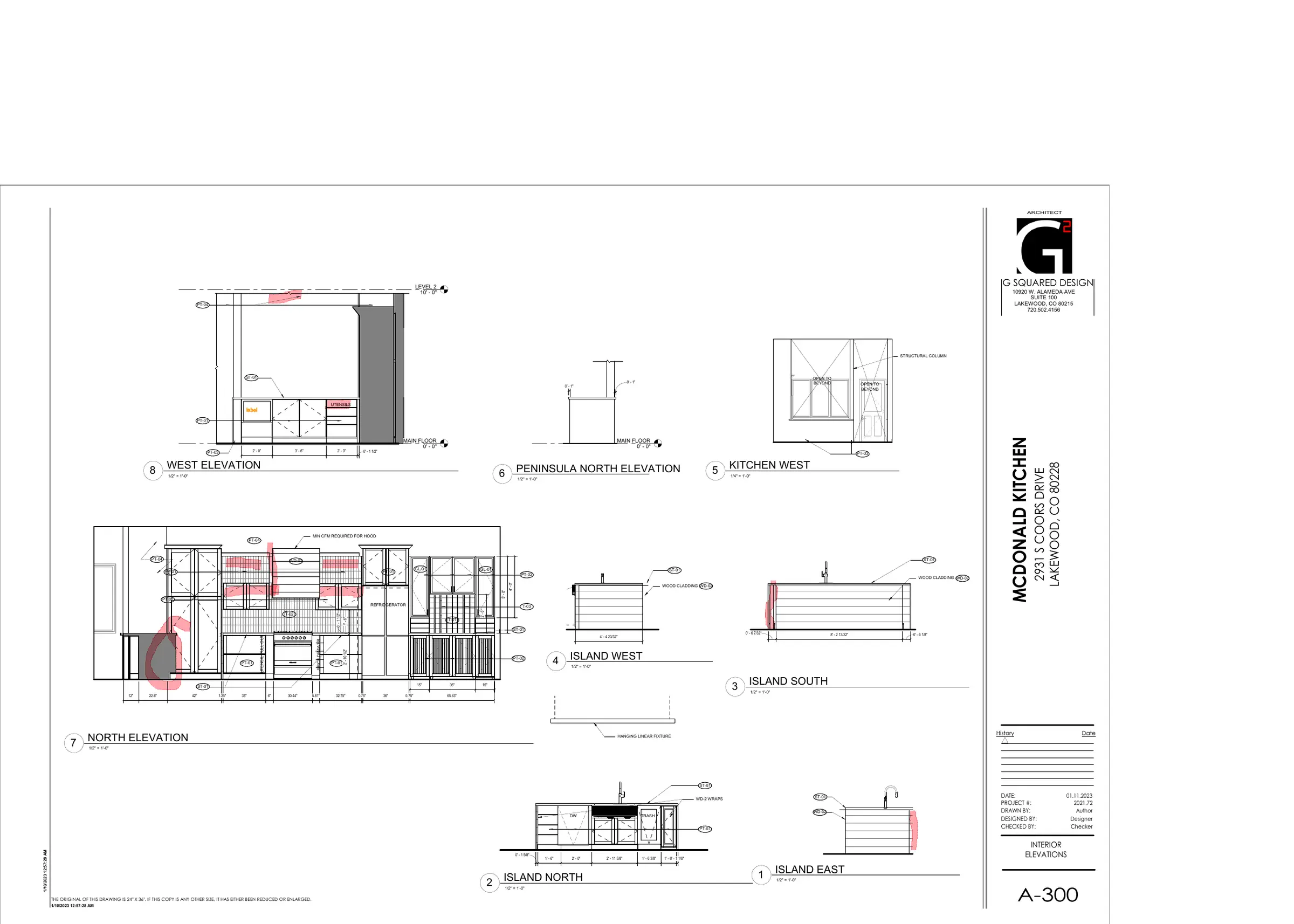

McDonald Kitchen interior details and millwork sections — Interior details · millwork, transitions + assemblies

What I was responsible for.

Programming + space planning01

Kitchen and living-area reconfiguration02

Cabinetry + island development03

Revit plans, elevations + details04

Material takeoffs + preliminary cost estimates05

Documentation + coordination06
